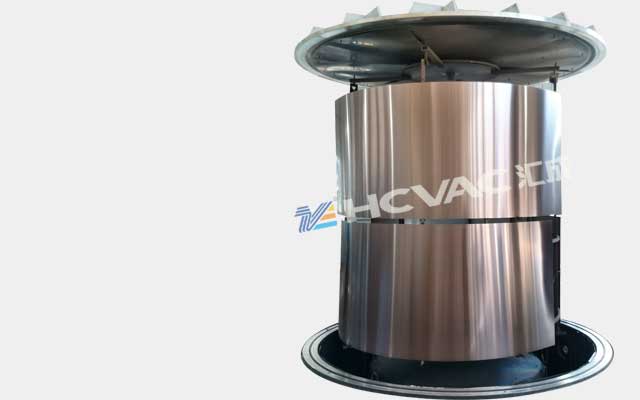

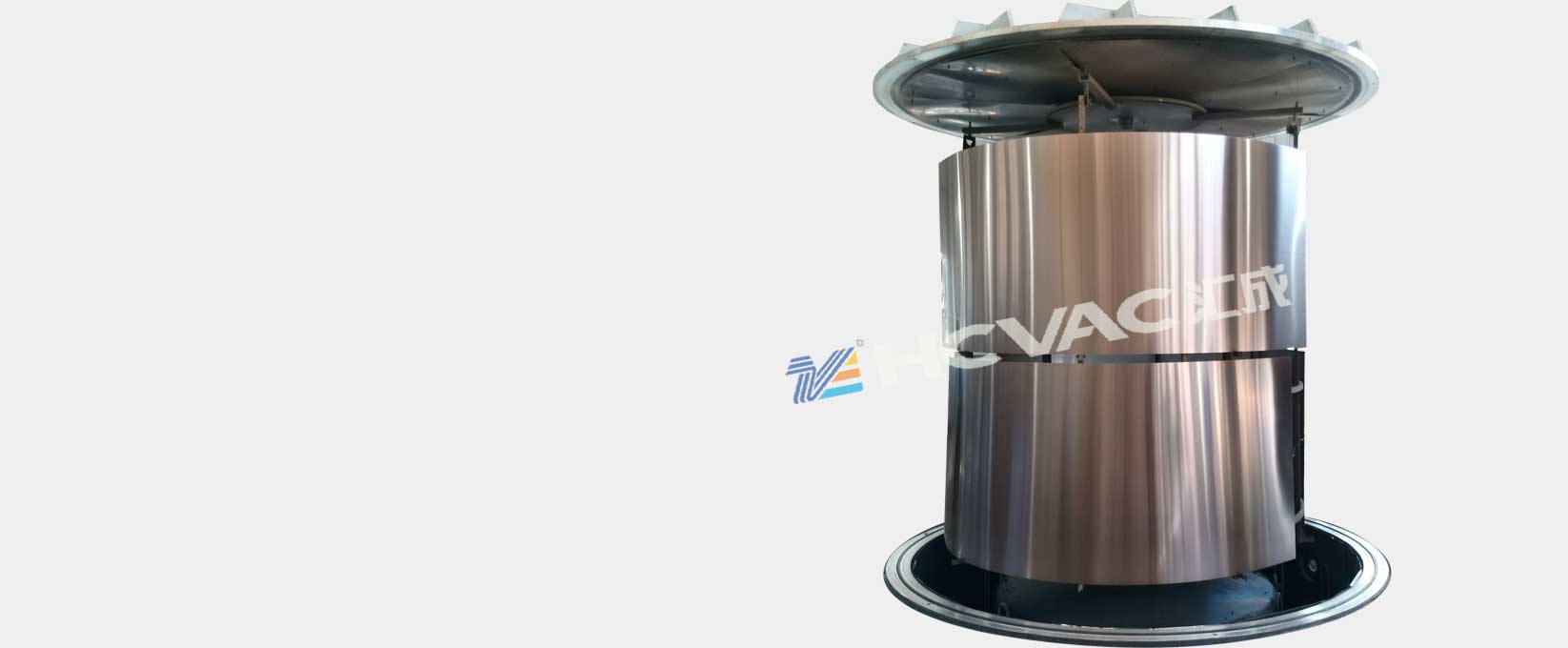

Vertical hanging door ion coating machine

This series machine is safty, environmental friendly, process stability, rich color film, color uniform, abrasion-resistant, corrosion, high temperature, good adhesion and is not easily fade.

It can coat TiN titanium gold film; TiC, CrC gun black, black, gray series films; ZrN zirconium gold, champagne gold, brass color series film; TiCN rose gold, rose red, burgundy, brown color series layer; TiO sapphire blue, green, pink, rainbow color series films etc.

It is widely used in stainless steel sheet, stainless steel pipe (up to 6 m), stainless steel display rack, stainless steel LOGO, locks, handles, bathroom hardware, stainless steel utensils and plastic plating parts, ceramics and other surface coating processes.

Product Advantage.

HCCA series vertical hanging door ion coating machine includes the following key capabilities:
  • Repeatability

    Accurate parameter control, automatic control and repeatable coating process

  • Decorative

    Multi color, uniform and bright surface

  • Effective

    Large cavity space, short process, friendly software control

  • Strong combination

    Reactive technology with high ionization rate and plasma density

  • Remote access

    Provide factory remote diagnostics

  • Environment

    Green production, no pollution

Mode HCCA-2236V
Size Ф2200×H3600mm
Structure Vertical front door opening and hoisting structure are equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-2240V
Size Ф2200×H4000mm
Structure Vertical front door opening and hoisting structure are equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-2345V
Size Ф2300×H4500mm
Structure Vertical front door opening and hoisting structure are equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-2545V
Size Ф2500×H4500mm
Structure Vertical front door opening and hoisting structure are equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-2820V
Size Ф2800×H2000mm
Structure The lifting structure is equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-3330V
Size Ф3300×H3000mm
Structure The lifting structure is equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
Mode HCCA-4020V
Size Ф4000×H2000mm
Structure The lifting structure is equipped with air extraction system and water cooling system
Vacuum system Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump
Vacuum measurement system Pirani + cold cathode + film gauge
Coating system Arc evaporation source,coating auxiliary ion dedicated power supply
Inflation system Mass flowmeter
Power supply DC power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Control mode Manual or automatic
Ultimate vacuum 5.0x10-4Pa
Arc source 22 set -28 set
200A-300A
Bias power supply 60kW / set
Working rotation mode Multi axis planetary public rotation, frequency control (controllable and adjustable)
Working baking temperature Normal temperature to 450 ℃ controllable and adjustable (PID temperature control)
Process gas Automatic filling system for 3 or 4-way process gas flow control and display system
Argon, nitrogen, oxygen, acetylene, etc
Cooling mode Water cooling cycle mode, with industrial cooling tower or industrial chiller (refrigerator) or cryogenic system. (provided by customer)
Control mode PLC + touch screen operation or computer control, manual, semi-automatic, automatic mode
Supply index Pressure 0.5-0.8MPa、Water temperature ≤25℃、Hydraulic pressure ≥0.2MPa
Alarm and protection Alarm for water shortage, over-current, over-voltage, open circuit and other abnormal conditions of pump and target, and implement corresponding protection measures and electrical interlocking function
Total power 185-200KW
Output frequency The voltage is 380V ± 5%, and the frequency is 50 Hz (it can be configured according to the customer's national electricity standard)
Area 35～55㎡
Remarks The above equipment parameters are only for reference, and are designed and customized according to the actual process requirements of customers

Application cases.

Screen

Decoration materials

Stainless steel trash can

Table
